Changing VanMoof S3 brake pads: step-by-step instructions

Looking for precise and easy-to-understand instructions for changing your VanMoof S3's brake pads yourself? This guide will walk you through the process step by step. Regular maintenance is crucial to ensuring optimal braking performance and safety for your VanMoof S3. Be sure to use the correct* brake pads.original VanMoof S3 brake pads and brake discs – essential components that help ensure the safe operation of your e-bike.

Why is changing brake pads important?

The brake pads on your VanMoof S3 are wear parts that can lose their performance over time. By replacing them in a timely manner VanMoof S3 brake pads Ensures that braking power remains consistent and your bike is safe to operate at all times. Replacing with high-quality, original components is essential to maintaining the mechanical integrity of your system.

Required tools and materials:

• Original VanMoof S3 brake pads
• Allen key (5 mm)
• Flathead screwdriver
• Clean cloth
• Brake cleaner
• Fine sandpaper (400 grit)
• Tongs

Step-by-step instructions

1. Preparation

Position your VanMoof S3 securely on a workstand or carefully lay it on its side for optimal access to the brake components. Make sure your work area is clean and well-lit.

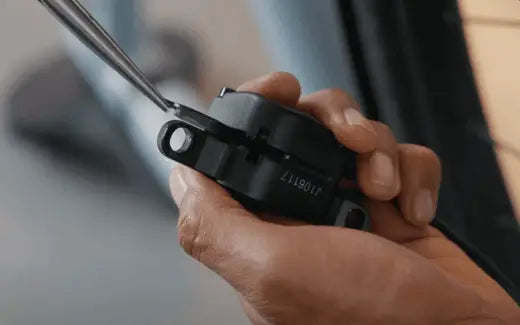

2. Remove old brake pads

Start by loosening the retaining screw with the 5 mm Allen key. Then gently push the brake pistons back with a flathead screwdriver to create enough clearance and remove the worn brake pads.

3. Cleaning the brake caliper

Using brake cleaner and a clean cloth, thoroughly clean the brake caliper of any dirt and deposits. This thorough cleaning ensures that no residue will impair operation even after installing the new brake components.

4. Prepare new brake pads

Before you get the new VanMoof S3 brake pads Lightly sand the contact surfaces with fine sandpaper (400 grit). This step reduces any squeaking noises and ensures proper contact pressure.

5. Install new brake pads

Carefully insert the prepared, original VanMoof brake pads into the brake caliper. Make sure to position the retaining pins correctly and tighten the locking screw to securely fix the new components.

6. Alignment and testing

After installing the new brake pad, remount the wheel and check the alignment of the brake pads to the brake disc. Apply the brakes several times to ensure all components are functioning optimally and consistent brake pressure is achieved.

Video tutorial
