Changing VanMoof S3 brake pads: Step-by-step instructions
Are you looking for precise and easy-to-understand instructions on how to change the brake pads on your VanMoof S3 yourself? This guide will show you how to do it step by step. Regular maintenance is crucial to ensure optimal braking performance and safety for your VanMoof S3. Be sure to use the correct parts. original VanMoof S3 brake pads and brake discs – essential components that help to guarantee the safe operation of your e-bike.
Why is changing the brake pads important?
The brake pads on your VanMoof S3 are wear parts that can lose their effectiveness over time. Replacing them in a timely manner will prevent this. VanMoof S3 brake pads This ensures that the braking force remains constant and your bike is always safely ready for use. Replacing parts with high-quality, original components is essential to maintain the mechanical integrity of your system.
Required tools and materials:
- Original VanMoof S3 brake pads
- Hex key (5 mm)
- flathead screwdriver
- Clean cloth
- Brake cleaner
- Fine sandpaper (400 grit)
- Tongs
Step-by-step instructions
1. Preparation
Position your VanMoof S3 securely on a work stand or carefully lay it on its side for optimal access to the brake components. Ensure your work area is clean and well-lit.
2. Remove old brake pads

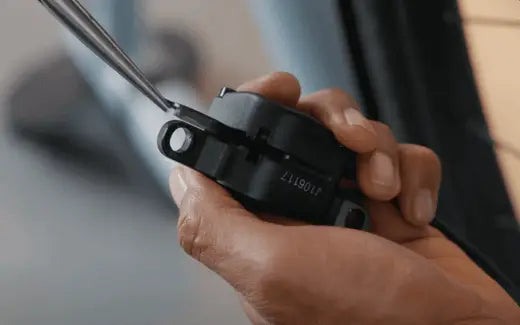

Start by loosening the retaining screw with the 5 mm Allen key. Then, gently push the brake pistons back with a flathead screwdriver to create sufficient clearance and remove the worn brake pads.
3. Cleaning the brake caliper
Using brake cleaner and a clean cloth, thoroughly clean the brake caliper to remove dirt and deposits. This careful cleaning ensures that no residue will impair operation even after the new brake components are installed.
4. Prepare new brake pads
Before you see the new VanMoof S3 brake pads Before inserting, lightly sand the contact surfaces with fine sandpaper (400 grit). This step reduces potential squeaking noises and ensures proper contact pressure.
5. Install new brake pads
Carefully insert the prepared, genuine VanMoof brake pads into the brake caliper. Ensure the retaining pins are correctly positioned and tighten the locking screw to securely fix the new components.
6. Alignment and testing
After installing the new brake pads, remount the wheel and check the alignment of the brake pads with the brake disc. Apply the brakes several times to ensure that all components are functioning optimally and that consistent brake pressure is achieved.
