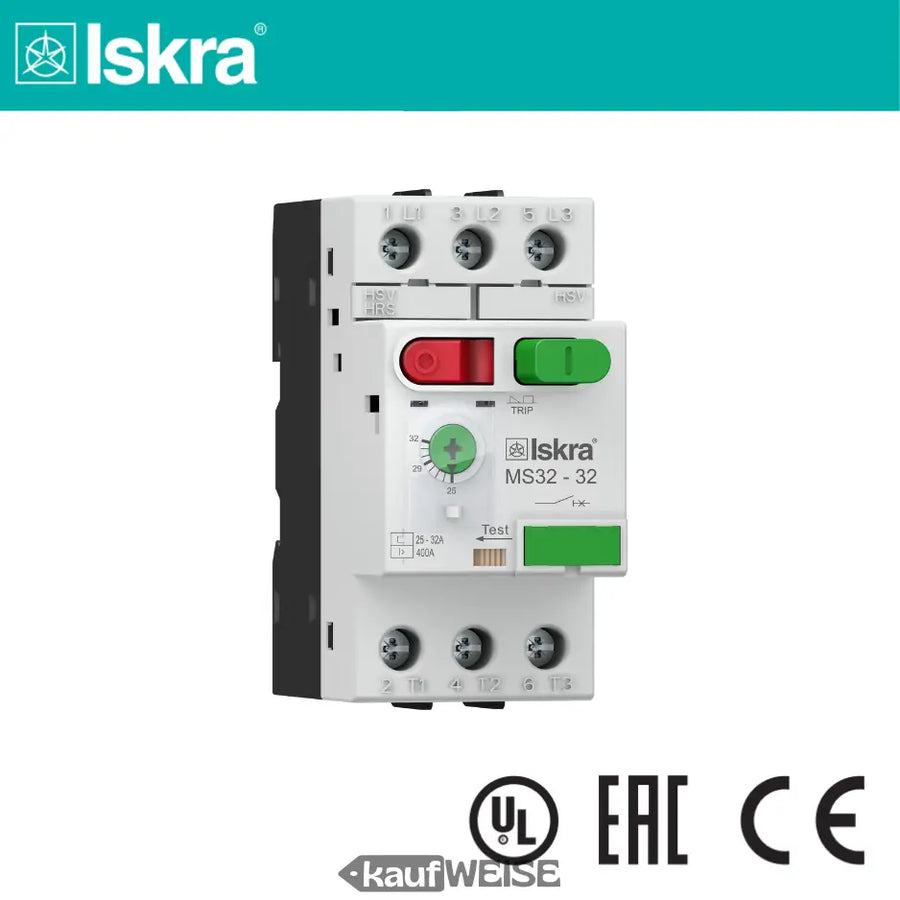

• Iskra MS32-32 Motorschutzschalter, 25-32 A, 3-polig, weiß-grün mit rotem Knopf
  • Iskra Motorschutzschalter MS32-32, 25-32 A, 3-polig, 15 kW
  • Iskra MS32-32 Motorschutzschalter, 25-32 A, 3-polig, 15 kW, weißes Gehäuse
  • Iskra MS32-32 Motorschutzschalter, 25-32 A, 3-polig, 15 kW mit roten und grünen Tasten
  • Iskra MS32-32 Motorschutzschalter, 3-polig, 25-32 A, weiß-grün mit rotem Knopf
  • Iskra MS32-32 Motorschutzschalter, 25-32A, 3-polig, 15kW, kompakt schwarz-silbern
Weiße DHL-markierte Box mit schwarzem Text und Logo. Kaufweise Paket Kaffeemühle-Box mit schwarzem Text und Logo auf braunem Karton. Weiße Box mit ’kaufweise’ Logo, Kartonmaterial. Brauner Pappkarton mit pinker Tastatur darin, beschriftet „kaufweise paket“ in schwarzem Text.

4.9 out of 5.0 ★★★★★

Motor protection switch 25-32A

€48,99
€79,90 €48,99
YOU SAVE €30,91 Sold out
vAT included.

Only 2 pieces left in stock!

✓ Adjustable range 25-32A ✓ 3-pole design ✓ Phase failure sensitive ✓ High switching capacity (16kA) ✓ Temperature compensated

Expected Delivery by DHL on

Geprüft & Empfohlen durch DEUTSCHE-EXPERTEN.de
  • American Express
  • Apple Pay
  • Bancontact
  • BLIK
  • EPS
  • Google Pay
  • iDEAL
  • Klarna
  • Maestro
  • Mastercard
  • MobilePay
  • PayPal
  • Przelewy24
  • Shop Pay
  • Union Pay
  • Visa

Product description

Reliable protection for your three-phase motors

Effectively protect your valuable motors and equipment against the most common sources of failure. Iskra motor protection switch MS32-32 This is a robust and precise circuit breaker specifically designed for the protection of 3-phase motors. It combines the functions of an overload relay and short-circuit protection in a single compact device.

Precisely adjustable and highly sensitive

The thermal overload release can be precisely adjusted to the rated current of your motor within the range of 25 to 32 amps adjust. Additionally, the integrated Phase failure sensitivity This ensures that the switch trips even if one phase fails, protecting the motor from harmful two-phase operation.

Designed for professional use:

With a high short-circuit breaking capacity of 16kA and temperature compensation, the MS32-32 operates reliably even under demanding conditions. Operation is simple and safe via a rotary knob.

  • Protective functions: Overload, short circuit and phase failure.
  • High switching capacity: Certainly also with high short-circuit currents.
  • Compliant with standards: Developed and tested according to IEC/EN 60947.

Scope of delivery

1 x Motor protection switch 25-32A

Technical data

  • Marke: Iskra
  • Modell: MS32-32
  • MPN: MS32-32
  • EAN: 3838671040409
  • Typ: Motorschutzschalter
  • Polzahl: 3
  • Einstellbereich Überlastauslöser: 25 - 32 A
  • Kurzschlussauslöser (fest): 416 A
  • Bemessungsbetriebsspannung: 690 V
  • Bemessungsdauerstrom Iu: 32 A
  • Bemessungsgrenzkurzschluss-Schaltvermögen Icu (400 V AC): 16 kA
  • Anschlussart Hauptstromkreis: Schraubanschluss
  • Betätigungsart: Drehknopf
  • Schutzart (IP): IP20

Country of origin:

  • Slowenien

Manufacturer/EU responsible person

Company: Iskra, d.dAddress: Stegne 21, 1000 Ljubljana, Slovenia Website: www.iskra.eu E-mail: info@iskra.eu Telephone: +386 1 513 10 00

Shipment

DHL Logo

Shipping via DHL – Deutsche Post

Your order will be processed safely and quickly with DHL Sent. For up-to-date information on possible delays or cancellations, please visit this page.

Shipping costs & Delivery times

Germany

Express (1 to 2 working days)
Orders 0kg–1kg: €2.99
Orders 1kg–3kg: €4.99
Orders 3kg–5kg: €5.99
Orders 5kg–10kg: €7.99

Free Shipping
Orders of €60.00 and above: For free

BENELUX (Belgium, Luxembourg, Netherlands)

Express International (1 to 4 working days)
Orders 0kg–1kg: €5.99
Orders 1kg–2kg: €8.99
Orders 2kg–3kg: €9.99
Orders 4kg–12kg: €29.99

Free Shipping
Orders of €60.00 and above: For free

DHL Parcel International Zones 1+2+3 EU

(Austria, Czech Republic, Denmark, France, Poland, Italy, Slovakia, Slovenia, Spain, Sweden, Hungary, Bulgaria, Estonia, Finland, Greece, Croatia, Ireland, Latvia, Lithuania, Portugal, Romania, Malta, Cyprus)

Express International (1 to 4 working days)
Orders 0kg–1kg: €8.99
Orders 1kg–2kg: €13.99
Orders 2kg–3kg: €14.99

Standard International (2 to 8 working days)
Orders 3kg–7kg: €19.99

Free Shipping
Orders of €60.00 and above: For free

Small states (Monaco, San Marino, Andorra, Vatican City, Liechtenstein, Switzerland)

standard
Orders 0kg–1kg: €10.99
Orders 1kg–2kg: €14.99
Orders 2kg–3kg: €15.99
Orders 3kg–4kg: €16.99
Orders of 4kg and above: €19.99

Zone 2 NON EU (United Kingdom)

DHL Parcel International
Orders 1kg–2kg: €18.99
Orders 2kg–3kg: €19.99
Orders 3kg–4kg: €22.99
Orders 4kg–5kg: €26.99
Orders 5kg–7kg: €28.99

International (United Arab Emirates, Australia, Israel, u.a.)

Standard International
Orders 0kg–1kg: €19.99
Orders 1kg–2kg: €25.99

  • SHIPPING VIA DHL/GERMAN POST
  • 14-DAY RETURN POLICY
  • FREE SHIPPING ON ORDERS OVER €60
View full details
Selected Variant Image
Iskra
Iskra MS32-32 motor protection switch (3-pole)...
€48,99
€79,90 €48,99

Three reasons for: The motor protection switch 25-32A

The most important

(Features and benefits) in detail.

Iskra Motorschutzschalter MS32-32, 25-32 A, 3-polig, 15 kW

Protect your investment

A burned out engine means expensive downtime and repair costs. This switch reliably disconnects the motor from the mains before an overload can cause damage.

Iskra MS32-32 Motorschutzschalter, 25-32A, 3-polig, 15kW, kompakt schwarz-silbern

Integrated phase failure sensitivity

Unlike simple fuses, this switch detects the dangerous condition of a phase failure and thus prevents expensive damage to the motor winding.

Iskra MS32-32 Motorschutzschalter, 25-32 A, 3-polig, 15 kW mit roten und grünen Tasten

Security for demanding environments

With a high short-circuit switching capacity of 16 kA and conformity to IEC/EN 60947, this switch meets professional standards for industrial applications.

FAQs

Motor protection switch 25-32A: Questions and answers

What faults does this switch protect my engine against?

The switch offers comprehensive protection against thermal overload (adjustable), against short circuits and, thanks to its phase failure sensitivity, also against the failure of a phase.

Is the short-circuit trigger adjustable?

No, the magnetic short-circuit release is permanently set to a value of 416 amps. Only the thermal overload release is adjustable in the range from 25 to 32 amps.

What voltage is the switch designed for?

The rated operating voltage is up to 690V AC, making it suitable for most common industrial three-phase networks (z.B. 400V) suitable.
