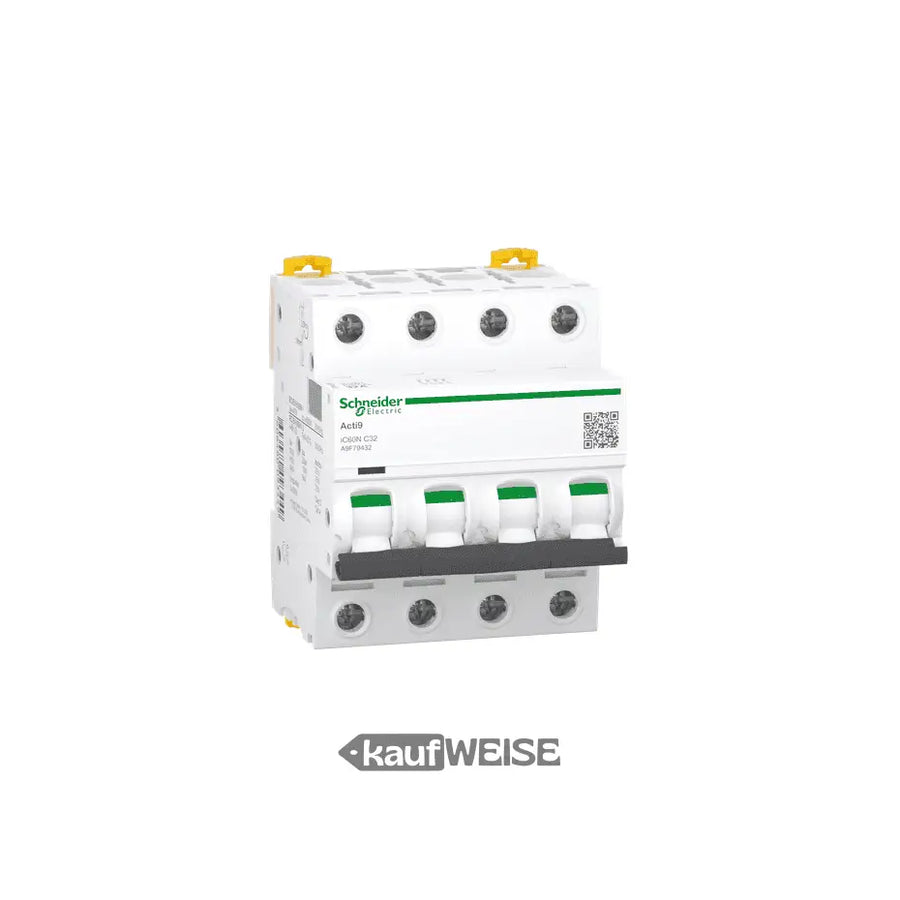

Schneider Electric Acti9 iC60N – circuit breaker 32A 4-pole | C characteristic | 6kA

Maximum safety for your electrical installation: Schneider Electric Acti9 iC60N (32A)

The Schneider Electric Acti9 iC60N (A9F04432) This is a 4-pole miniature circuit breaker (MCB) specifically designed for demanding industrial and commercial applications. With a rated current of 32 A and a C-type tripping characteristic, it reliably protects your circuits against short circuits and overloads. Thanks to innovative technologies such as VisiTrip and VisiSafe, this series sets new standards in terms of safety and ease of maintenance.

Why the Acti9 iC60N is the professional choice:

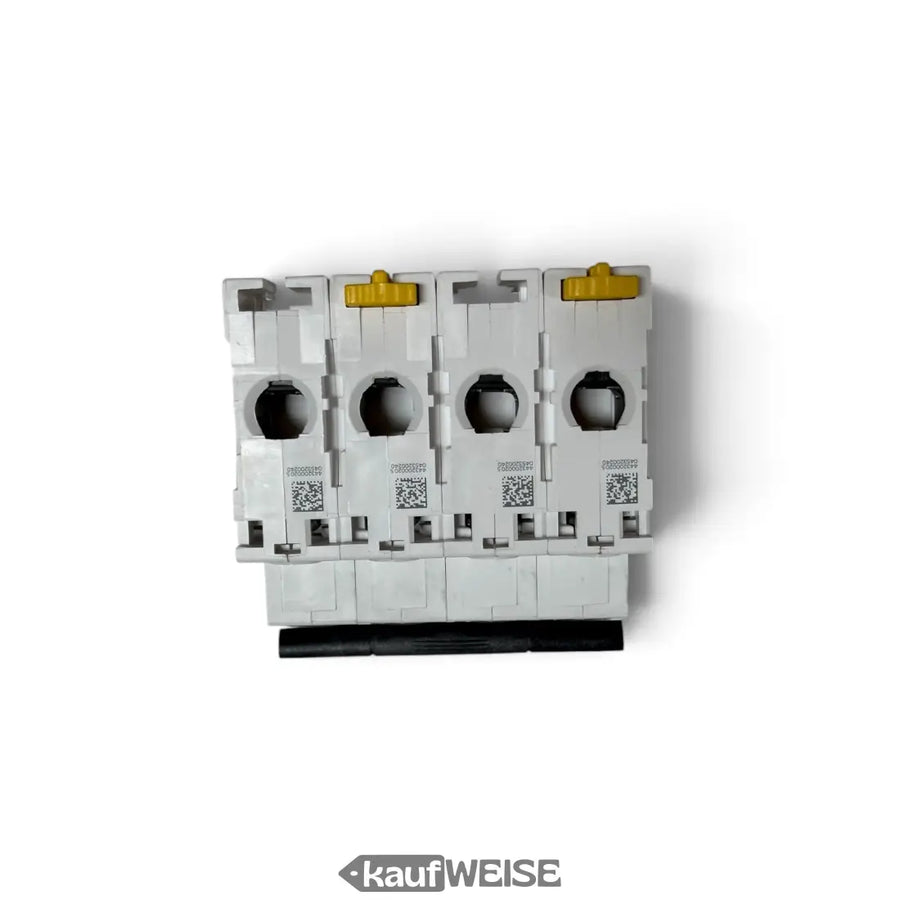

• Visible Security (VisiSafe): A green stripe at the toggle switch position guarantees the physical separation of the contacts. This allows you to see at a glance whether the output is de-energized – for absolutely safe work during maintenance.

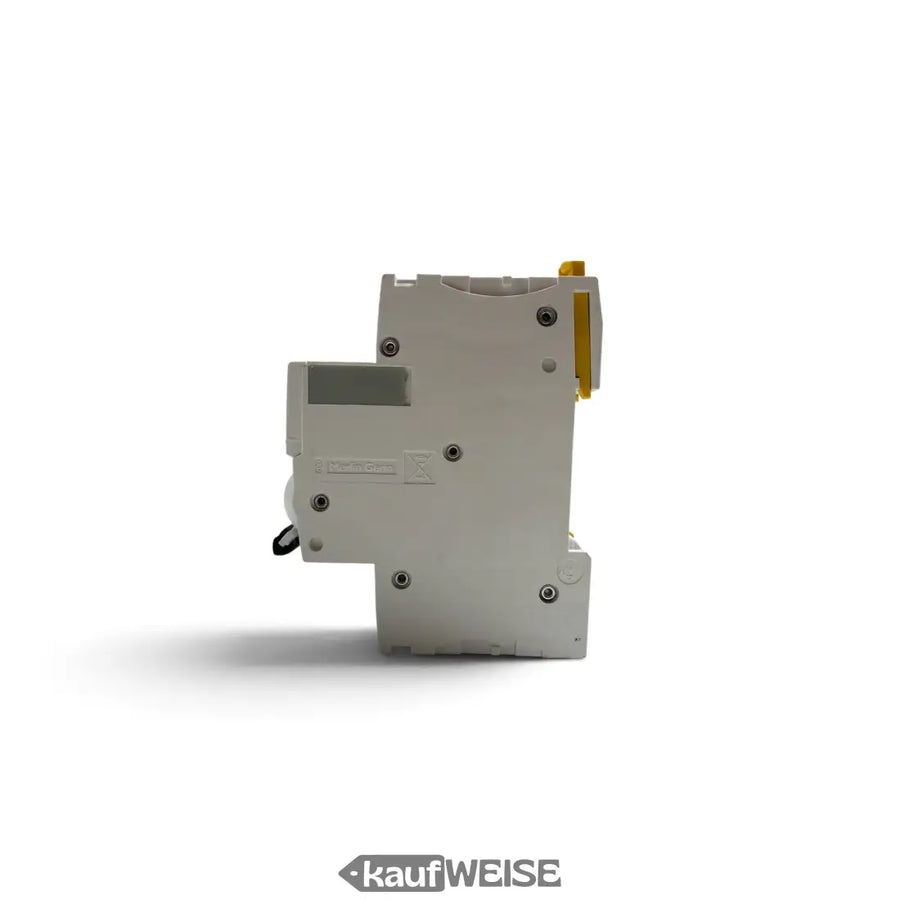

• Rapid fault diagnosis (VisiTrip): The red indicator window on the front immediately shows which circuit has tripped due to a fault. This significantly reduces troubleshooting time and minimizes downtime.
• Durable mechanics: The snap-action mechanism ensures low-wear contact closure, regardless of the user's actuation speed. This significantly increases the electrical and mechanical lifespan.

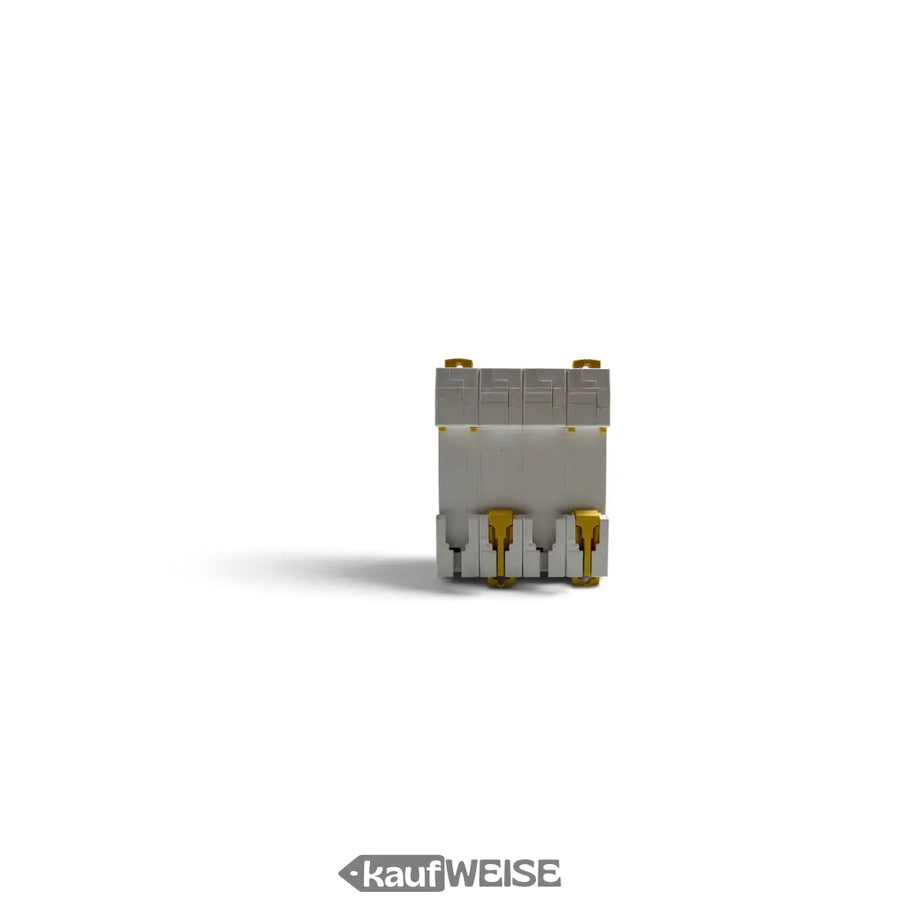

• Flexible mounting: Dual terminal blocks allow for the simultaneous connection of cables and pin busbars. Thanks to the front-mounted mounting element, the device can be installed on a DIN rail without tools and can also be removed from a unit.

Areas of application & Standards

This circuit breaker is ideal for protecting general loads and inductive loads (C-curve). It complies with standards IEC/EN 60898-1 (6000 A) and IEC/EN 60947-2 (10 kA) and is therefore approved for both residential and industrial environments.
